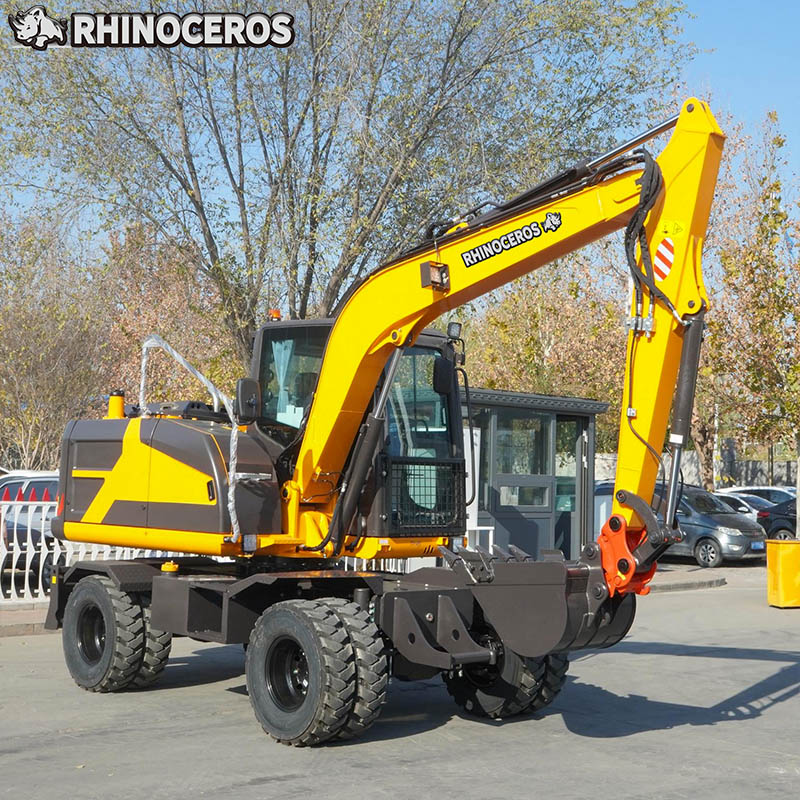

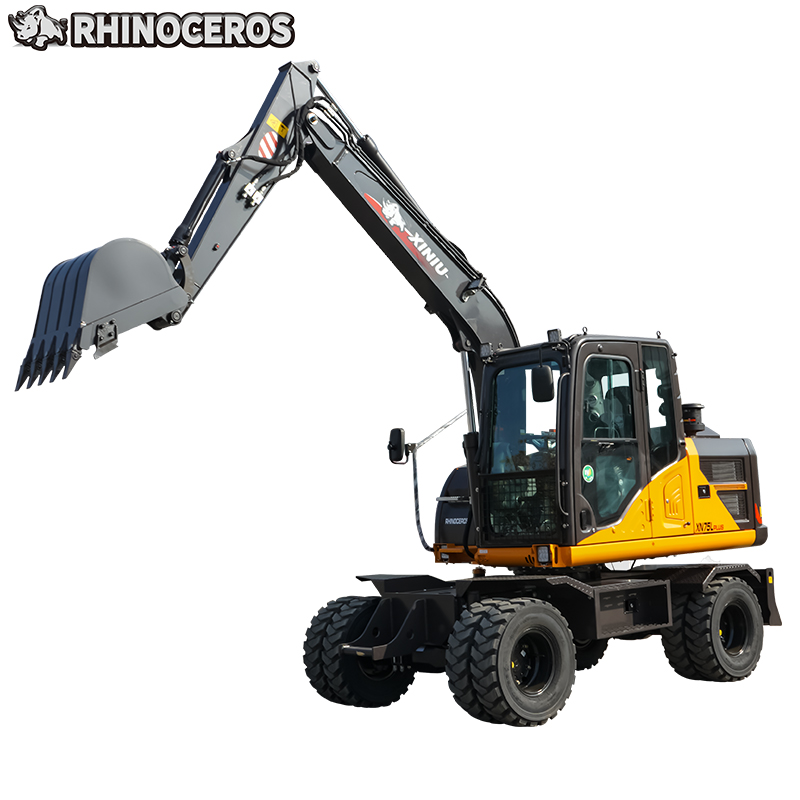

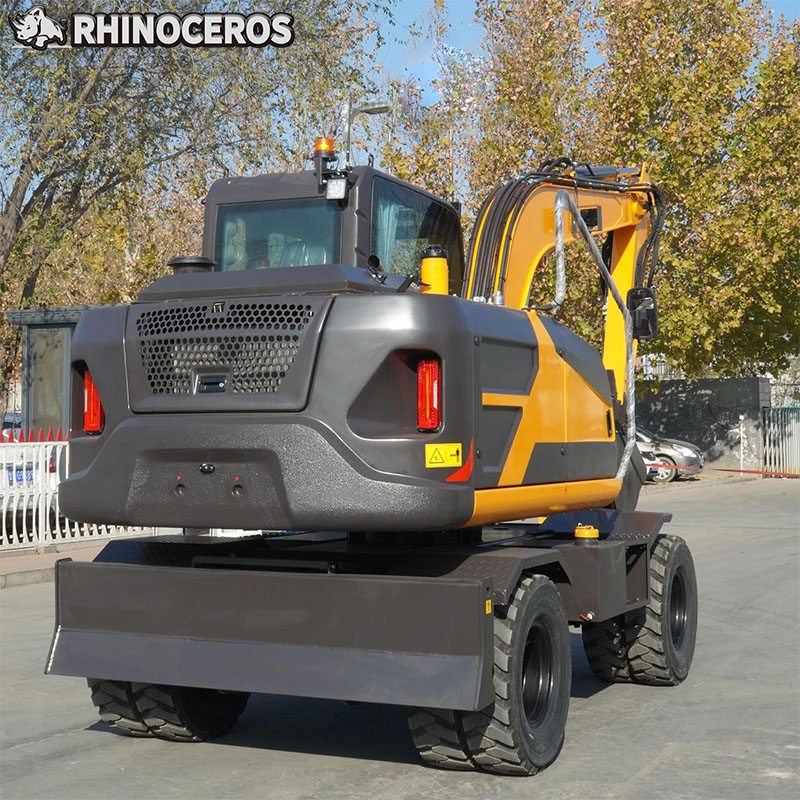

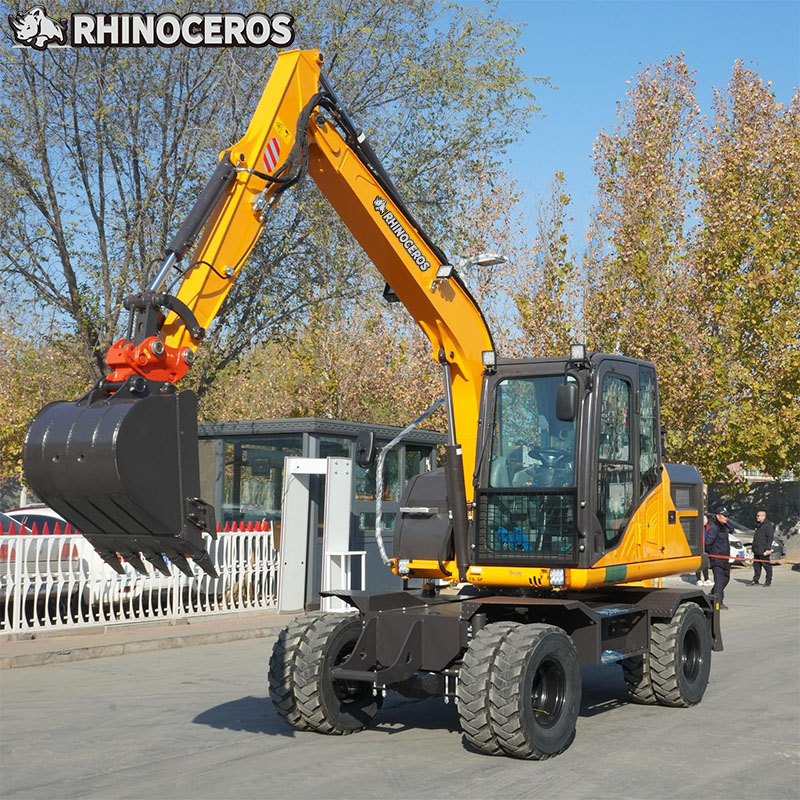

XN75L

Wheel Excavator

One of the most popular wheeled excavators currently available, with different emission engines to choose from, meeting the needs of any oil type in any region. The large displacement motor provides even stronger power.


       •YANMAR/YUCHAI Engine

       •Iron counterweight

       •107L displacement walking motor

       •Automatic transmission


  Contact Now
Key Specifications
XN75L
Machine Weight6900 kg15212 lbs
Bucket Capacity0.27 cbm9.5 ft³
Width2025 mm79 in
Max. Travel Speed35 km/h21.7 mph
Engine BrandYANMAR/YUCHAI
Power36.8 kw
49 hp
Max. digging radius
6538 mm255 in
Max. digging depth3310 mm129 in


6905kg
0.27cbm
2025mm
35km/h
Yuchai
36.8kw
6538mm
3310mm
Features
Patented Joint Tires
Patented Joint Tires
Patent joint tire, resistant to cutting and stone trapping.
One-Key Controls
One-Key Controls
One key controls the balance cylinder and four-wheel brakes, making operation more convenient
Load-Sensitive Hydraulic System
Load-Sensitive Hydraulic System
The entire vehicle adopts a load-sensitive hydraulic system, which has a faster response speed
Wheel-Side Deceleration Axle
Wheel-Side Deceleration Axle
Wheel side deceleration axle, complex road conditions, better passability
